Downloads (3)

This is a chemical product. Before storage or use you must download and read the accompanying safety and technical datasheets.

Safety DataSheet (SDS)360 KB
Dutch Safety DataSheet451 KB
Technical DataSheet (TDS)383 KB

Specification

Product Data
ColourClear
Chemistry / MaterialVinylester
Density1.08g/cm³
Shelf Life6Months
Viscosity245mPa.s
Max Service Temp140°C
Acid Value9.5Mg KOH/g
Volatile Content37%
Pot Life and Cure Times
Demould Time (Typical)24hrs
Pot Life (Typical)22mins
Gel Time (Typical)0.83hrs
UV ResistanceGood
Cured Mechanical Properties
Tensile Strength90MPa
Tensile Modulus3.5GPa
Elongation at Break4.0%
Flexural Strength155MPa
Flexural Modulus3.6GPa
Glass Transition Temperature150°C
Impact Resistance13kJ/m2
General Properties
Gross Weight1.188kg

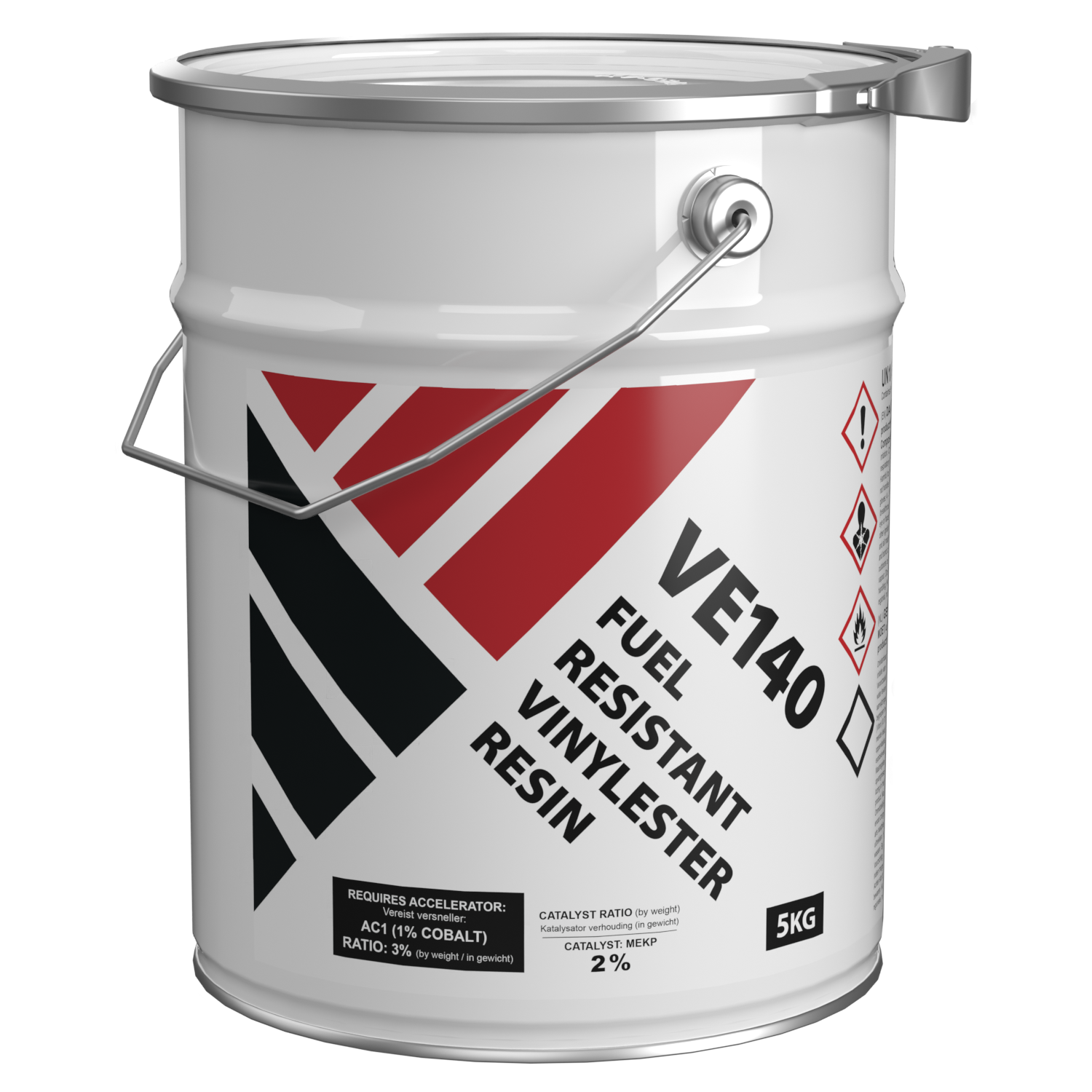

VE140 Fuel Resistant Vinylester Resin

VE140 is a fuel and chemical resistant epoxy novalac vinylester resin suitable for composite laminating and sealing/coating where high fuel and chemical resistance is required, such as construction and sealing of carbon or glass fibre fuel tanks.

Available to buy online in 1kg and 5kg packs. Requires cobalt accelerator and MEKP catalyst, sold separately.


PRODUCT VERSIONS

Pack Size

AVAILABILITY:More than 20 availablefor immediate shipping


Optional items

PRODUCT OPTIONS

PRICE
£21.25ex. VAT
(£21.25 /KG)
More than 20 availablefor immediate shipping
QTY
PACKS
PACKS
We won’t be beaten on price!

If you believe you’re buying an equivalent product cheaper elsewhere, contact us to discuss your requirements.

VE140 is a high-performance epoxy novalac vinylester resin system suitable for the construction and sealing/coating of composite fuel tanks. It is also suitable for non-fuel/chemical contact applications requiring superior mechanical properties or high temperature resistance, up to 140°C service temperature.

VE140 is low viscosity and offers fast wet-out glass, carbon fibre and a wide range of other reinforcements. It is recommended for hand laminating but can also be used filament winding, spray-up and resin infusion, subject to correct process parameters.

Although VE140 can be cured at room temperature, an elevated temperature post-cure is required to reach full mechanical properties, temperature resistance and chemical resistance. For fuel tank sealing or construction, an elevated temperature post-cure should always be undertaken.

Typical Uses

As well as fuel and chemical exposure applications, the mechanical performance and high service temperature of VE140 make it suitable for a wide range of uses:

  • Composite fuel tank construction (carbon fibre, glass fibre, aramid fibre)
  • Composite fuel tank coating or sealing (fumed silica and solution MW recommended)
  • Chemical resistant fabrication/coating (solvents, acids, chlorine etc.)
  • High temperature fibreglass/GRP applications (up to 140°C service temperature)

How to Buy

VE140 is available to buy online in 1kg and 5kg sizes. VE140 requires cobalt accelerator and MEKP to cure and are available as 'add-on' items when purchasing VE140.

For 1kg packs: 250g of AC1 Cobalt Accelerator and 25g of MEKP are recommended.

For 5kg packs: 250g of AC1 Cobalt Accelerator and 125g of MEKP are recommended.

Further Information

Requires Cobalt Accelerator

VE140 is unaccelerated and requires cobalt accelerator to achieve full cure. 3% by weight of a 1% cobalt dilution, such as AC1 Cobalt Accelerator (1%), should be added to the resin immediately prior to use. See TDS for full details.

Requires MEKP Catalyst

VE140 is cured using MEKP (methyl ethyl ketone peroxide) catalyst. The reactivity of the resin will be determined by both the percentage of cobalt accelerator, and the percentage of MEKP catalyst. For most application, the addition of 2% (standard reactivity) MEKP is suggested. See TDS for full details.

Use as a Gelcoat

To act as a fuel or chemical resistant gelcoat, VE140 can be thickened using 3% (by weight) fumed silica to create a spray-gel consistency or 5% (by weight) fumed silica to create a brush-gel consistency. The resin will retain a light tack, suitable for backing up, for around 24hrs.

Use as a Sealer

To use VE140 as a fuel/chemical resistant flow-coat/sealer, it should be thickened with 5% fumed silica to achieve a brush-gel consistency. One or more coats can be applied, waiting for previous coats to cure to the B-stage. To achieve a tack-free finish, 2% solution MW (wax additive) should be added to the final coat.

VE140 is a high-performance epoxy novalac vinylester resin system suitable for the construction and sealing/coating of composite fuel tanks. It is also suitable for non-fuel/chemical contact applications requiring superior mechanical properties or high temperature resistance, up to 140°C service temperature.

VE140 is low viscosity and offers fast wet-out glass, carbon fibre and a wide range of other reinforcements. It is recommended for hand laminating but can also be used filament winding, spray-up and resin infusion, subject to correct process parameters.

Although VE140 can be cured at room temperature, an elevated temperature post-cure is required to reach full mechanical properties, temperature resistance and chemical resistance. For fuel tank sealing or construction, an elevated temperature post-cure should always be undertaken.

Typical Uses

As well as fuel and chemical exposure applications, the mechanical performance and high service temperature of VE140 make it suitable for a wide range of uses:

  • Composite fuel tank construction (carbon fibre, glass fibre, aramid fibre)
  • Composite fuel tank coating or sealing (fumed silica and solution MW recommended)
  • Chemical resistant fabrication/coating (solvents, acids, chlorine etc.)
  • High temperature fibreglass/GRP applications (up to 140°C service temperature)

How to Buy

VE140 is available to buy online in 1kg and 5kg sizes. VE140 requires cobalt accelerator and MEKP to cure and are available as 'add-on' items when purchasing VE140.

For 1kg packs: 250g of AC1 Cobalt Accelerator and 25g of MEKP are recommended.

For 5kg packs: 250g of AC1 Cobalt Accelerator and 125g of MEKP are recommended.

Further Information

Requires Cobalt Accelerator

VE140 is unaccelerated and requires cobalt accelerator to achieve full cure. 3% by weight of a 1% cobalt dilution, such as AC1 Cobalt Accelerator (1%), should be added to the resin immediately prior to use. See TDS for full details.

Requires MEKP Catalyst

VE140 is cured using MEKP (methyl ethyl ketone peroxide) catalyst. The reactivity of the resin will be determined by both the percentage of cobalt accelerator, and the percentage of MEKP catalyst. For most application, the addition of 2% (standard reactivity) MEKP is suggested. See TDS for full details.

Use as a Gelcoat

To act as a fuel or chemical resistant gelcoat, VE140 can be thickened using 3% (by weight) fumed silica to create a spray-gel consistency or 5% (by weight) fumed silica to create a brush-gel consistency. The resin will retain a light tack, suitable for backing up, for around 24hrs.

Use as a Sealer

To use VE140 as a fuel/chemical resistant flow-coat/sealer, it should be thickened with 5% fumed silica to achieve a brush-gel consistency. One or more coats can be applied, waiting for previous coats to cure to the B-stage. To achieve a tack-free finish, 2% solution MW (wax additive) should be added to the final coat.

Downloads (3)

This is a chemical product. Before storage or use you must download and read the accompanying safety and technical datasheets.

Safety DataSheet (SDS)360 KB
Dutch Safety DataSheet451 KB
Technical DataSheet (TDS)383 KB

Specification

Product Data
ColourClear
Chemistry / MaterialVinylester
Density1.08g/cm³
Shelf Life6Months
Viscosity245mPa.s
Max Service Temp140°C
Acid Value9.5Mg KOH/g
Volatile Content37%
Pot Life and Cure Times
Demould Time (Typical)24hrs
Pot Life (Typical)22mins
Gel Time (Typical)0.83hrs
UV ResistanceGood
Cured Mechanical Properties
Tensile Strength90MPa
Tensile Modulus3.5GPa
Elongation at Break4.0%
Flexural Strength155MPa
Flexural Modulus3.6GPa
Glass Transition Temperature150°C
Impact Resistance13kJ/m2
General Properties
Gross Weight1.188kg
Can’t find the answer you’re looking for?Ask our technical team a question.

The reason we can’t ship MEKP outside of the UK is because it is highly oxidizing, and standard carrier services do not permit it to be transported.

However you can purchase MEKP from any suppliers of composite materials including fibreglass (GRP) shops, roofing suppliers, boat buildings, car bodyshops etc. There is nothing special about the MEKP we supply, you can ask at your local supplier for ‘Standard reactivity MEKP’; brands such as Andanox KP9, Akperox A30, Butanox M50 (Akzo Nobel) are all suitable and  widely available.

The VE140 has a good level of chemical resistance to solvents including methanol and ethanol.  We have seen people making or lining tanks to improve the chemical resistance compared to traditional resins.
