Downloads (2)

Safety Datasheet (SDS)338 KB
Technical Datasheet (TDS)475 KB

Specification

Product Data
ColourClear
Chemistry / MaterialEpoxy
Viscosity19000mPa.s
Pot Life (Typical)3.5mins
Initial Cure Time0.75Hrs
Cured Mechanical Properties
Max Service Temp50°C
Hardness75 (Hard)Shore D
FlexibilityHard / Rigid
General Properties
Gross Weight0.073kg

Shipping Information

In the currently selected pack size, this product is classed as 'Limited Quantity Dangerous Goods' for the purposes of transport. This means that transport restrictions apply to certain destinations.

No restrictions or surcharges shipping by road to:

UK, Ireland, Channel Islands, Isle of Man, Austria, Belgium, France, Germany, Luxembourg, Monaco, Netherlands, Norway, Finland, , Czech Republic, Denmark, Hungary, Italy, Poland, Portugal, Spain, Andorra, Switzerland, Estonia, Latvia, Lithuania, Slovakia, Slovenia, Sweden

Shipping possible by airfreight (£55 surcharge applies) to:

United States, Finland, Bahrain, Hong Kong, Japan, Republic of Korea, Kuwait, Singapore, Taiwan, United Arab Emirates, Trinidad and Tobago

Can't ship to:

All other countries. If your country is not listed above then unfortunately we can't ship this product to you.

For very large orders, specialist shipping can be arranged. Please contact us to discuss.

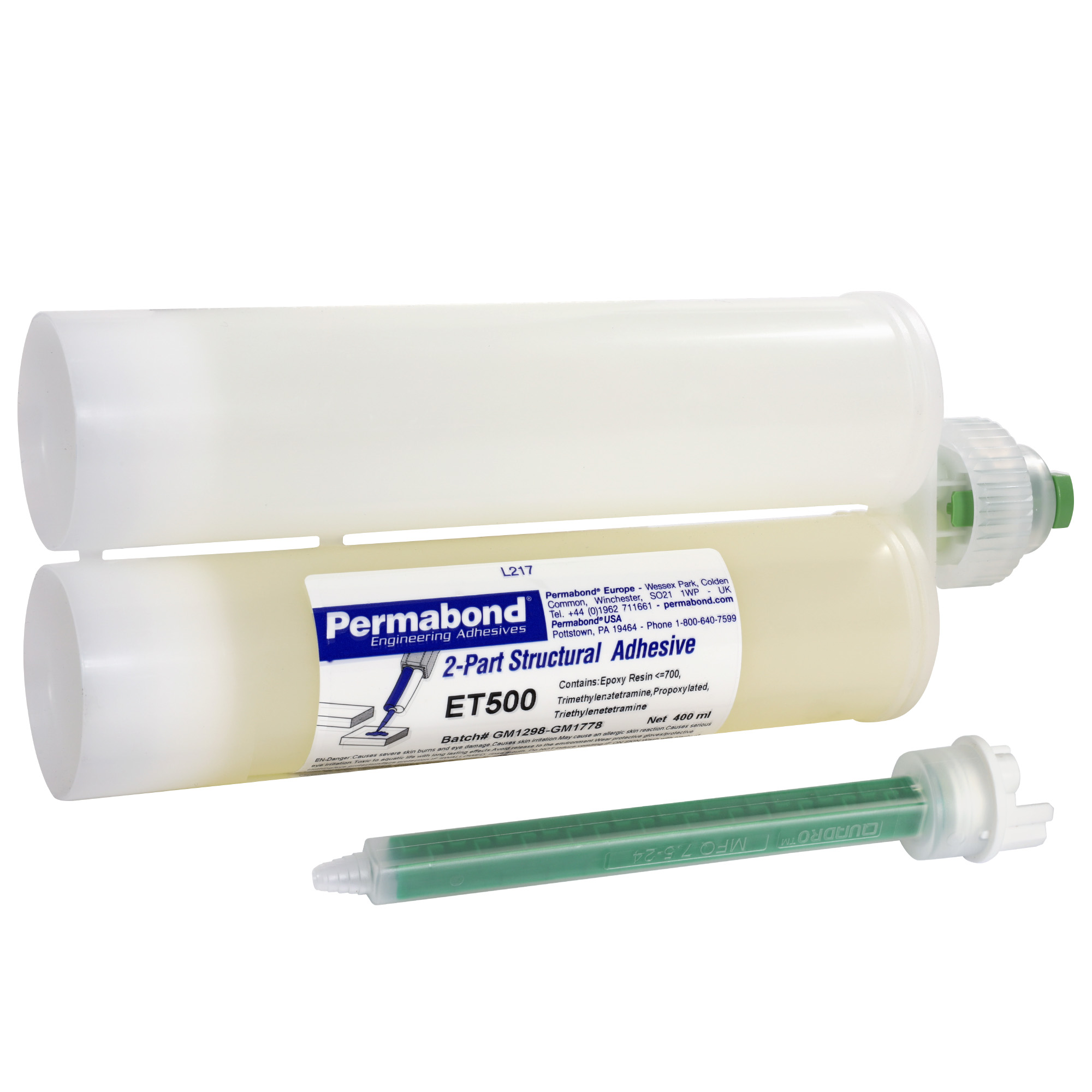

ET500 Rigid 5min Epoxy Adhesive

ET500 is a fast curing, clear, rigid two-part engineering grade epoxy structural adhesive. ET500 has very good bond strength to a wide variety of substrates including metals, composites, wood, ceramics and some plastics.

5min cure. Supplied in a twin cartridge pack (1:1 ratio, resin and hardener). Available to buy online in 50ml and 400ml cartridges.


PRODUCT VERSIONS

Pack Size

AVAILABILITY:More than 30 availablefor immediate shipping


PRICE
£11.95ex. VAT
More than 30 availablefor immediate shipping
QTY
EACH
EACH
We won’t be beaten on price!

If you believe you’re buying an equivalent product cheaper elsewhere, contact us to discuss your requirements.

Very high performance, 5 minute structural epoxy adhesive suitable for a wide range of demanding bonding applications.

Permabond's ET500 is a fully rigid epoxy glue with a 5 minute 1st-stage cure making it ideally suited to applications where a fast cure and strong, rigid bond are required. Full bond strength is not reached for 24hrs.

Structural fast epoxy adhesives are our recommended adhesives for bonding metal (aluminium, steel, titanium etc.) to other metals and to plastics (carbon fibre composites, fibreglass/FRP/GRP). Although epoxy adhesives are also suitable for plastic-to-plastic bonding, in many instances an acrylic adhesive adhesive (such as our VuduGlu VM100) will outperform epoxy adhesive for plastic-to-plastic applications, such as GRP to GRP or CFRP to CFRP.

For applications involving high levels of shock and vibration then we would recommend our ET515 Semi Flexible 15min

Pack Sizes and Dispensing

ET500 is a professional adhesive and is therefore sold in the standard 50ml Twin Tube pack which requires the standard type 50ml Twin Tube Dispenser Gun, available to buy separately. It is also available in a large 400ml trade size twin tube intended for production use. The 400ml requires a 400ml Twin Tube Dispenser Gun. Choose the pack size you require from the drop-down list at the top of the page.

Choose the correct mixer nozzle

In both pack sizes the adhesive is supplied with 1x Static Mixer Nozzle.

In both 50ml and 400ml cartridges, Permabond cartridges use 'Type 2' mixer nozzles which feature an advanced bayonet fitting to eliminate cross contamination. Click below to buy the compatible cartridges for your chosen pack size:

Very high performance, 5 minute structural epoxy adhesive suitable for a wide range of demanding bonding applications.

Permabond's ET500 is a fully rigid epoxy glue with a 5 minute 1st-stage cure making it ideally suited to applications where a fast cure and strong, rigid bond are required. Full bond strength is not reached for 24hrs.

Structural fast epoxy adhesives are our recommended adhesives for bonding metal (aluminium, steel, titanium etc.) to other metals and to plastics (carbon fibre composites, fibreglass/FRP/GRP). Although epoxy adhesives are also suitable for plastic-to-plastic bonding, in many instances an acrylic adhesive adhesive (such as our VuduGlu VM100) will outperform epoxy adhesive for plastic-to-plastic applications, such as GRP to GRP or CFRP to CFRP.

For applications involving high levels of shock and vibration then we would recommend our ET515 Semi Flexible 15min

Pack Sizes and Dispensing

ET500 is a professional adhesive and is therefore sold in the standard 50ml Twin Tube pack which requires the standard type 50ml Twin Tube Dispenser Gun, available to buy separately. It is also available in a large 400ml trade size twin tube intended for production use. The 400ml requires a 400ml Twin Tube Dispenser Gun. Choose the pack size you require from the drop-down list at the top of the page.

Choose the correct mixer nozzle

In both pack sizes the adhesive is supplied with 1x Static Mixer Nozzle.

In both 50ml and 400ml cartridges, Permabond cartridges use 'Type 2' mixer nozzles which feature an advanced bayonet fitting to eliminate cross contamination. Click below to buy the compatible cartridges for your chosen pack size:

Downloads (2)

Safety Datasheet (SDS)338 KB
Technical Datasheet (TDS)475 KB

Specification

Product Data
ColourClear
Chemistry / MaterialEpoxy
Viscosity19000mPa.s
Pot Life (Typical)3.5mins
Initial Cure Time0.75Hrs
Cured Mechanical Properties
Max Service Temp50°C
Hardness75 (Hard)Shore D
FlexibilityHard / Rigid
General Properties
Gross Weight0.073kg
Can’t find the answer you’re looking for?Ask our technical team a question.

Yes, certainly. In fact the easiest way to do this is to simply leave the static mixer nozzle in place after you use the adhesive. The adhesive that's in the nozzle will have been mixed and so will cure but the glue at the start of the nozzle will be unmixed and not cured meaning the nozzle will twist off perfectly and the glue inside will have been protected from the atmosphere and so will be perfectly preserved ready for use.

A typical application of the adhesive is approximately a 0.5mm thick layer. At this thickness, one 50ml cartridge would cover an area 30cm by 30cm; a 400ml cartridge would cover an area approximately 90cm by 90cm.

For best results when gluing over a large surface area, use a spreader to help ensure the adhesive is laid down in an even layer.

There is no practical minimum bond thickness for this adhesive although you do need to ensure that *some* adhesive is present, which is why glass spheres are sometimes used to prevent the adhesive from being scraped off completely. Essentially though, as long as an even thin film is applied the bond strength between the two materials will be good.

Yes ET500 can be pigmented. We have a range of Easy Composites Epoxy Colour Pigments that will work well. Alternatively, for transparent tints try our range of Easy Composites Translucent Tinting Pigments.

Yes. Once fully hardened, the ET500 adhesive can, like most cured epoxies, be drilled. You would typically use a metal cutting HSS drill bit and starting with a small pilot hole, work your way up to the bigger hole sizes. Be careful not to use too much speed or pressure to avoid the resin being damaged by heat.
