Specification

Product Data
ColourBlack
BrandToho
Fabric Specification
WeaveUnidirectional
Fibre TypeCarbon Fibre
General Properties
Gross Weight0.013kg

Shipping Information

This product is safe for all forms of transport. No restrictions apply.

Simply add the item to your basket and then use the Shipping Calculator on the basket page to find the shipping price for this (and any other items).

250g Unidirectional Carbon Fibre Tape

Unidirectional (UD) carbon fibre tape in a lighter weight 250gsm fabric weight. Suitable for specifically aligned high strength reinforcement of composite laminates when combined with a suitable resin system, such as epoxy.

Available in 50mm (2") and 100mm (4") widths, sold by the linear metre.


PRODUCT VERSIONS

Width

AVAILABILITY:More than 200 availablefor immediate shipping


PRICE
£3.13inc. VAT
More than 200 availablefor immediate shipping
QTY
LINEAR METRES
LINEAR METRES

Trade discounts

0-45-1920-99100+
£3.13£2.44£2.23£1.39
We won’t be beaten on price!

If you believe you’re buying an equivalent product cheaper elsewhere, contact us to discuss your requirements.

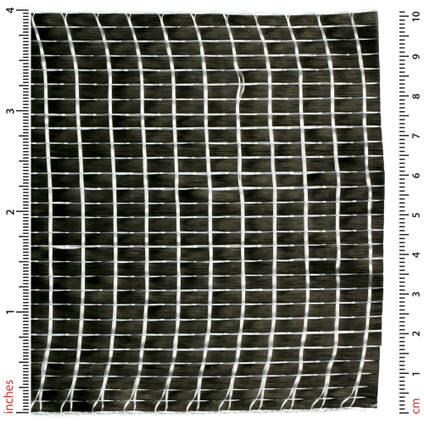

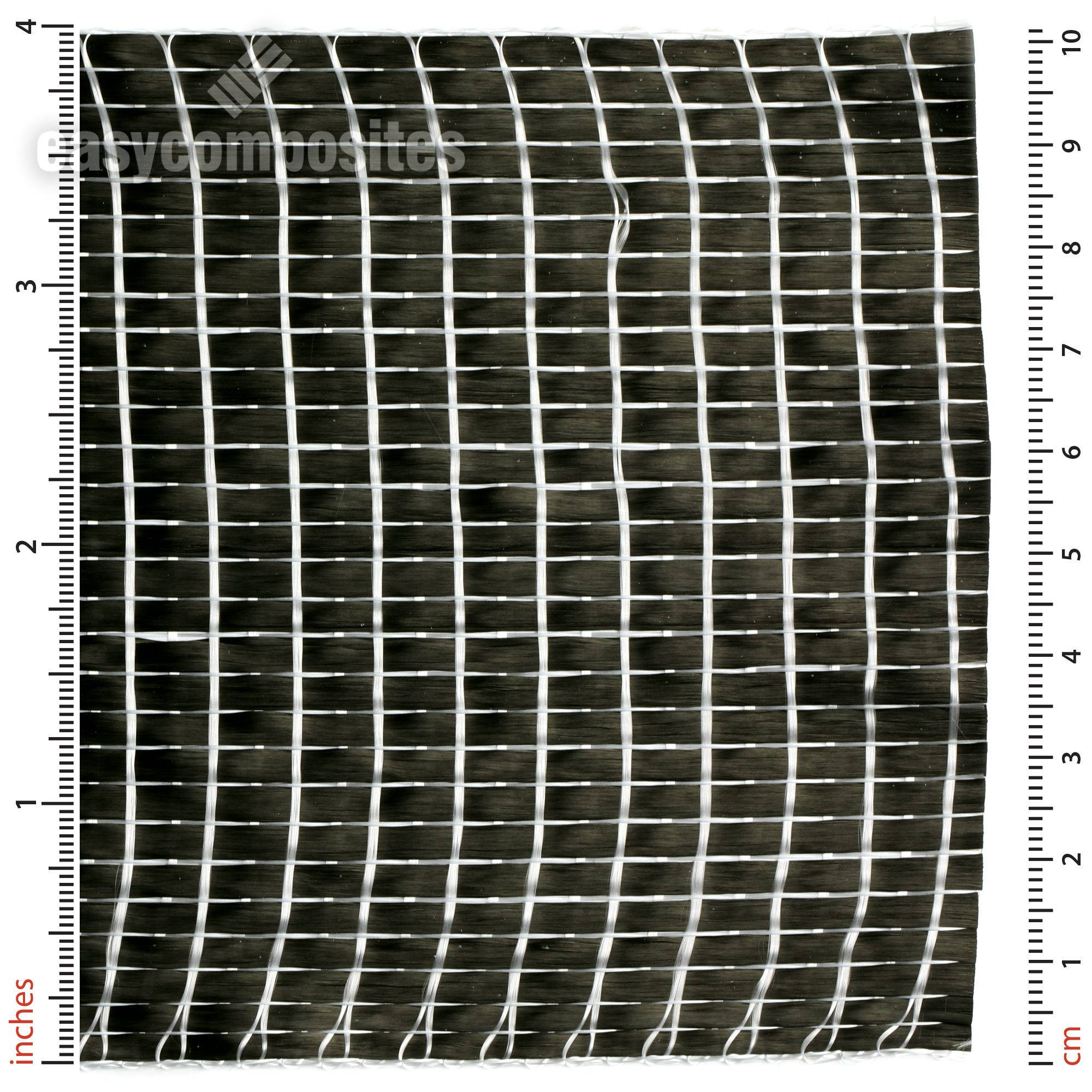

Lighter weight 250gsm unidirectional carbon fibre tape made using unidirectional carbon fibres held together by lightweight glass cross-stitching.

The minimal cross stitch results in negligible crimp of the carbon fibres but does help to facilitate wet-out, particularly in resin infusion processing where the cross stitch assists with resin flow through the tape.

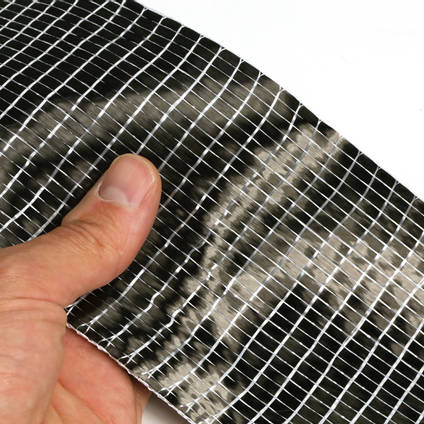

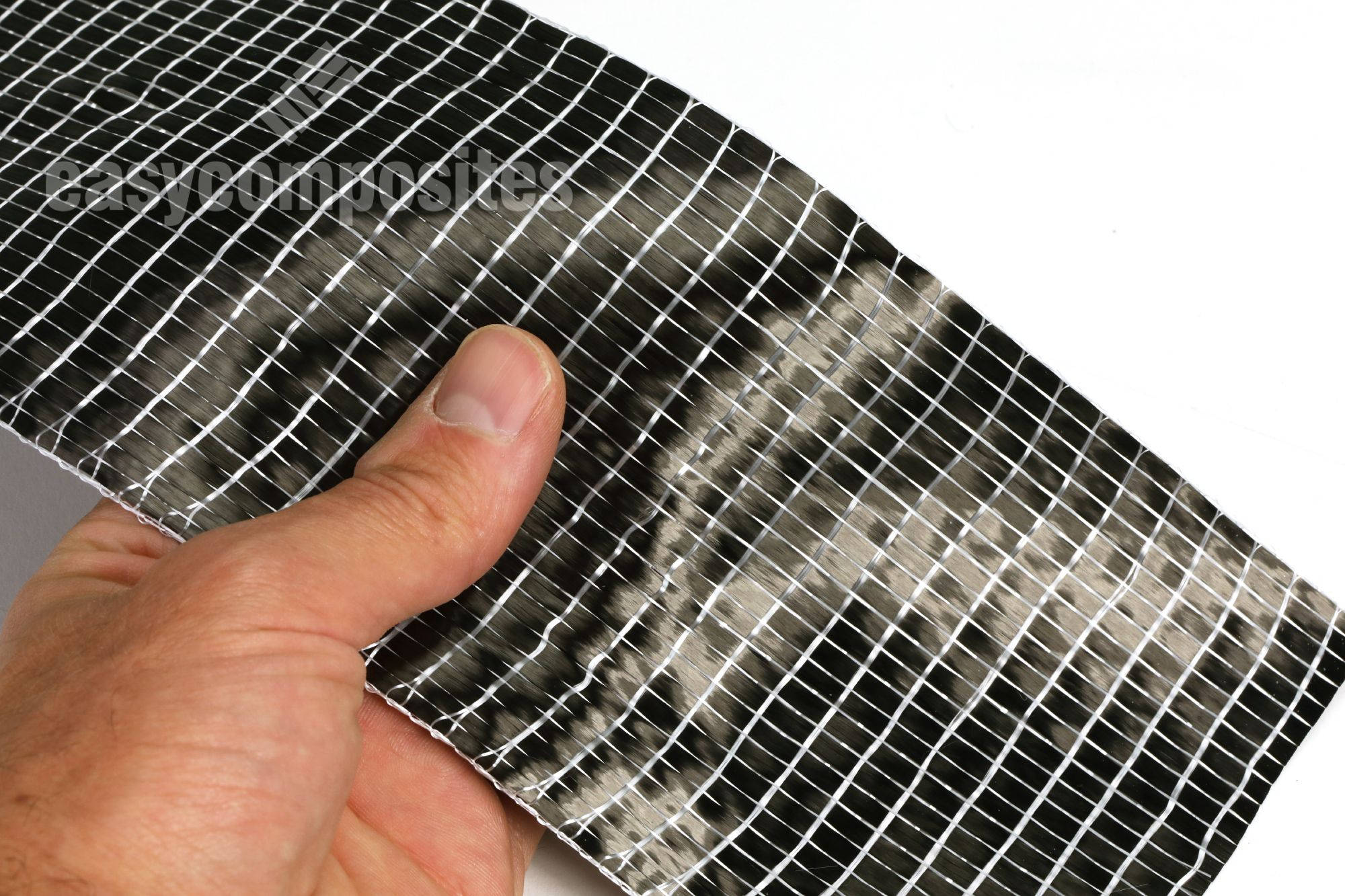

The tape offers excellent conformity and drape but at the same time, the high quality stitching makes the tape perfectly stable and easy-to-handle. The tape is compatible with all standard resin systems including polyester, vinylester and epoxy resin although is ideally matched to epoxy resin owing to its high mechanical performance.

Applications

  • Sporting equipment (skis, archery bow limbs etc.)
  • Marine (yacht stringer reinforcement)
  • Aerospace (wing spars etc.)
  • Motorsport (aero wings, structural components)
  • Pipe wrapping/reinforcement

Why use Unidirectional Reinforcement?

Working with unidirectional material allows targeted orientation of the fibres in the direction in which the load will be applied allowing composite structures to be manufactured with maximum strength at the minimum weight because all fibres in the laminate are being utilised as effectively as possible.

The limbs of an archery bow are an excellent example where all of the load is longitudinal, trying the 'bend' the limbs of the bow in just one direction. In this scenario, using a bi-directional material (such as woven carbon fibre cloth) would mean that half of the carbon reinforcement would effectively be useless because the fibres oriented at 90° to the direction of the load (in this case all the weft fibres) would offer no strength in the longitudinal direction at all. By using unidirectional carbon fibre, oriented length-ways down the limb, all of the carbon reinforcement would be contributing to the strength of the limb meaning that limbs using unidirectional reinforcement could be around half the weight as ones of the same strength made using a bi-directional reinforcement. Utilisation of none-crimped unidirectional carbon fibre would further enhance the mechanical performance of the limbs compared with conventional crimped unidirectional material.

How to Buy

The tape listed on this page is available either 50mm or 100mm wide. Please choose the width you require from the product versions near the top of the page.

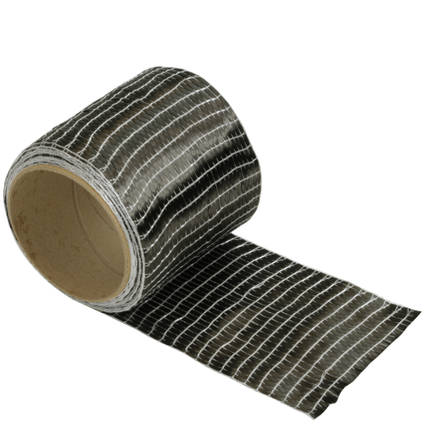

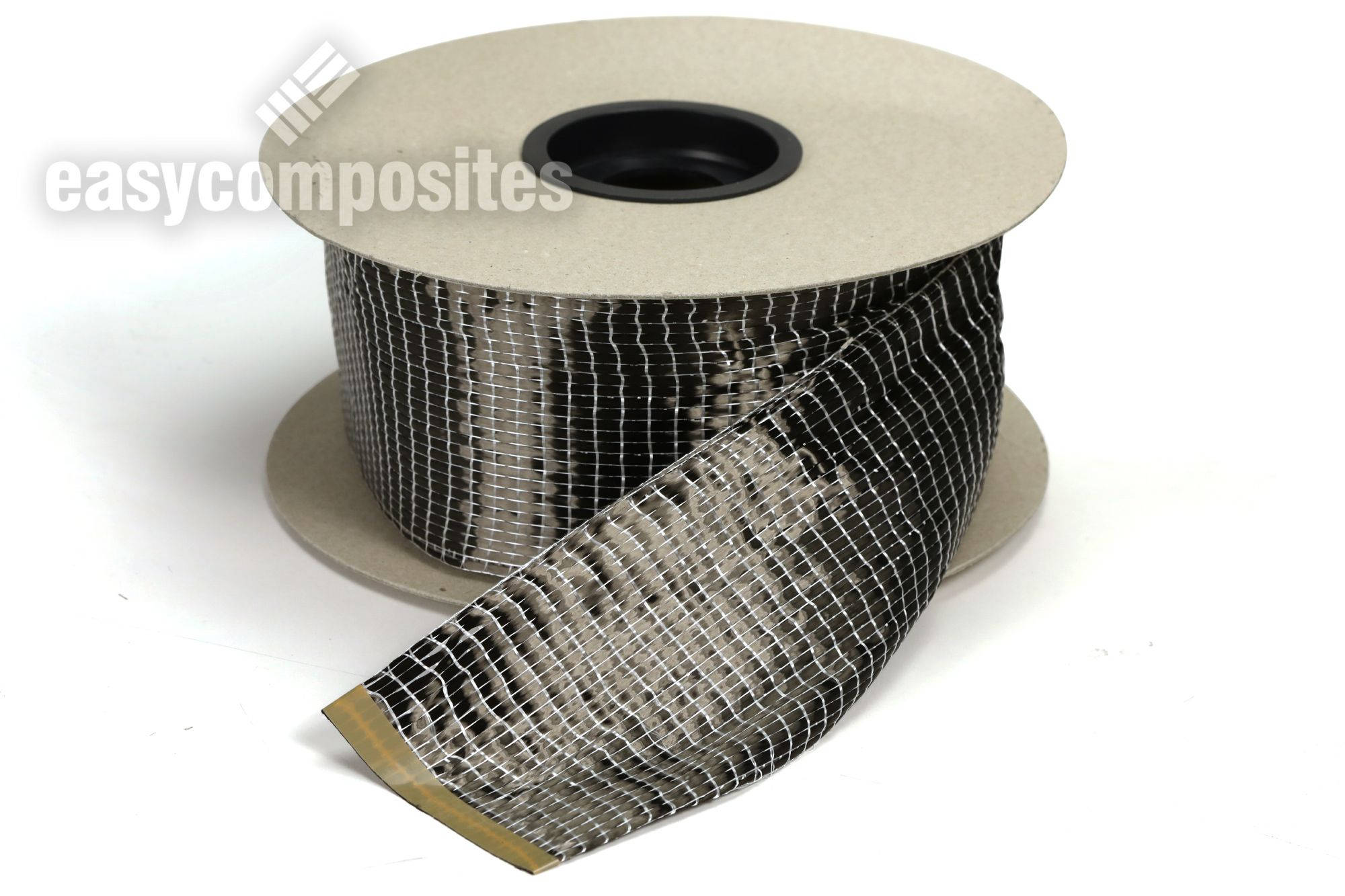

The is sold by the linear metre, the price shown is the price per metre. Enter the number of linear metres you require in the quantity box; the tape will be supplied in one continuous roll according to the number of metres you purchase.

Trade discounts

0-45-1920-99100+
£3.13£2.44£2.23£1.39
We won’t be beaten on price!

If you believe you’re buying an equivalent product cheaper elsewhere, contact us to discuss your requirements.

Lighter weight 250gsm unidirectional carbon fibre tape made using unidirectional carbon fibres held together by lightweight glass cross-stitching.

The minimal cross stitch results in negligible crimp of the carbon fibres but does help to facilitate wet-out, particularly in resin infusion processing where the cross stitch assists with resin flow through the tape.

The tape offers excellent conformity and drape but at the same time, the high quality stitching makes the tape perfectly stable and easy-to-handle. The tape is compatible with all standard resin systems including polyester, vinylester and epoxy resin although is ideally matched to epoxy resin owing to its high mechanical performance.

Applications

  • Sporting equipment (skis, archery bow limbs etc.)
  • Marine (yacht stringer reinforcement)
  • Aerospace (wing spars etc.)
  • Motorsport (aero wings, structural components)
  • Pipe wrapping/reinforcement

Why use Unidirectional Reinforcement?

Working with unidirectional material allows targeted orientation of the fibres in the direction in which the load will be applied allowing composite structures to be manufactured with maximum strength at the minimum weight because all fibres in the laminate are being utilised as effectively as possible.

The limbs of an archery bow are an excellent example where all of the load is longitudinal, trying the 'bend' the limbs of the bow in just one direction. In this scenario, using a bi-directional material (such as woven carbon fibre cloth) would mean that half of the carbon reinforcement would effectively be useless because the fibres oriented at 90° to the direction of the load (in this case all the weft fibres) would offer no strength in the longitudinal direction at all. By using unidirectional carbon fibre, oriented length-ways down the limb, all of the carbon reinforcement would be contributing to the strength of the limb meaning that limbs using unidirectional reinforcement could be around half the weight as ones of the same strength made using a bi-directional reinforcement. Utilisation of none-crimped unidirectional carbon fibre would further enhance the mechanical performance of the limbs compared with conventional crimped unidirectional material.

How to Buy

The tape listed on this page is available either 50mm or 100mm wide. Please choose the width you require from the product versions near the top of the page.

The is sold by the linear metre, the price shown is the price per metre. Enter the number of linear metres you require in the quantity box; the tape will be supplied in one continuous roll according to the number of metres you purchase.

Specification

Product Data
ColourBlack
BrandToho
Fabric Specification
WeaveUnidirectional
Fibre TypeCarbon Fibre
General Properties
Gross Weight0.013kg
Can’t find the answer you’re looking for?Ask our technical team a question.

For wet-lay lamination you will use approximately the same weight of resin as the weight of the fabric. For example, with a 200gsm cloth, for 1 square metre you will have 200g of fabric and thus will need 200g of resin to wet it out, plus a small amount of wastage for the brush and mixing pot.

'3k' is the filament count or tow size. It simply means that each 'bunch' of carbon fibres that this cloth is woven from is made up of 3000 individual carbon filaments. Bigger counts (6k, 12k etc.) means chunkier 'bunches' of carbon so chunkier fabrics.

Thickness of any reinforcement is dependent on consoldation (how much it's 'squashed down'. For this reason we generally give out thickness figures for when the reiforcement is consoldated under vacuum (1bar); this seems like the most useful figure. For example, a 90gsm carbon, a single layer, compressed under vacuum, would be about 0.1mm thick. For a 200gsm carbon a single layer would be about 0.25mm thick. This is the number you see listed under 'thickness' in the specification table.

You can purchase a sample of our fabrics here.

Well, this depends entirely on what reinforcement you're laminating, speficically how thick and heavy it is. If you're laminating 5mm of carbon fibre you'll use a lot more resin that if you're laminating just 1mm of it. Fortunately though there a really quick rule to get a good estimate - simply add up the total weight of your reinforcement and you'll probably need the same weight in resin. This means that if you're laminating 5 layers of 200g carbon (so a total of 1000g of carbon) then you'll want about 1000g (i.e. 1kg) of Epoxy Resin. If it was 2 layers of 450g glass then you'd need about 900g per square metre.

The carbon fabric itself will survive many hundreds of degrees and is not the limiting factor for almost all applications. The limiting factor will be the heat distortion temperature of the resin system you plan to laminate this fabric with.



An engine rocker/cam cover may easily be exposed to hot oils at around 120°C as well as heat from the exhaust which would be dependent on the engine configuration and level of tune. As such we would recommend considering using a higher temperature resin system such as our Very High Temperature Epoxy Laminating Resin which, with an appropriate post-cure, can be used up to 180°C.



An alternative option would be to consider making the part with an out of autoclave pre-preg carbon fibre where typically the resin systems can achieve a HDT up to 120°C.

For very critical applications, such as aerospace, even dry carbon fabrics will be 'lifed' due to very gradual degradation of the sizing on the fibres, however in practice, for most applications, the degradation is minimal and most users would consider dry fabrics to not have a shelf life when stored appropriately.

All Carbon fibres are naturally charcoal black in colour.

Yes, it’s quite a loose form and can be rolled laterally as well as curved and shaped longitudinally. However, because of its relatively loose form you would need to be careful not to break up the tape, causing the fibres to separate.

Our Spread-Tow Ribbon is not designed to be used as a clothing heating element. It’s true that passing an electrical current through any carbon fibre material will cause it to heat up but this is a long way from being a safe heating element for clothes.

No, this carbon fibre tape is not self adhesive; it's simply a dry woven carbon fibre tape. To bond it to EPP foam you would need to use a laminating resin like our EL2 Epoxy Laminating Resin.
